Fiber Optic Patch Cord Production Equipment/Optic Fiber Polishing Machine/Patch Cord Machine

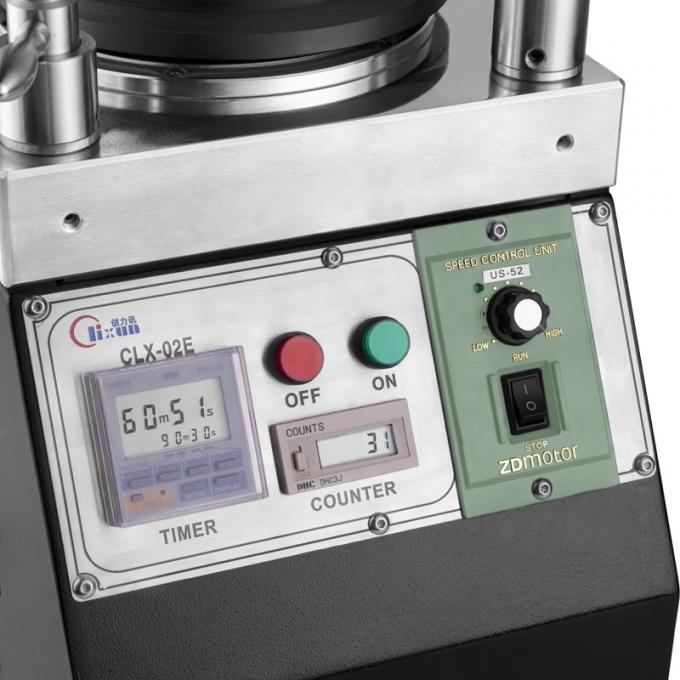

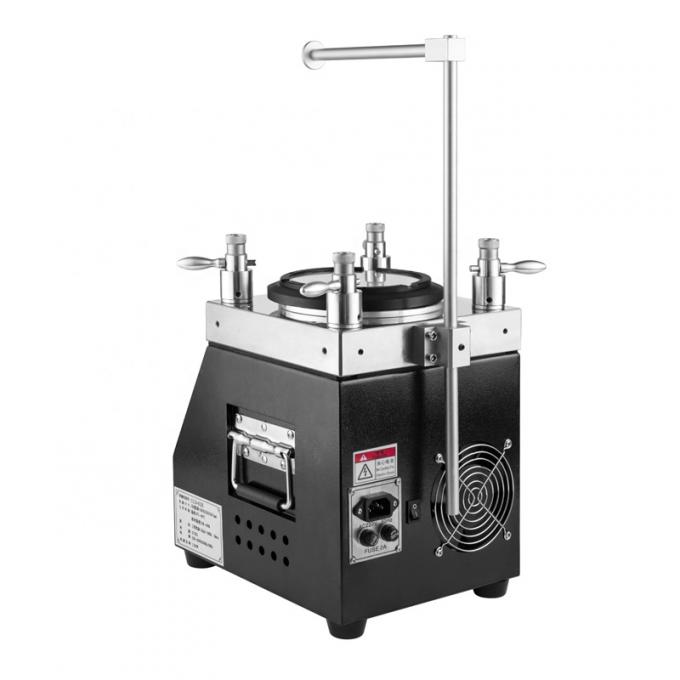

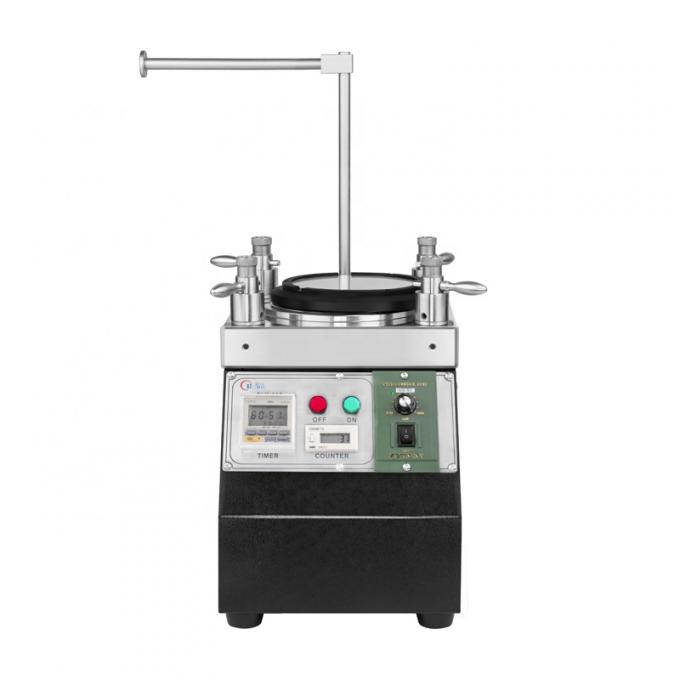

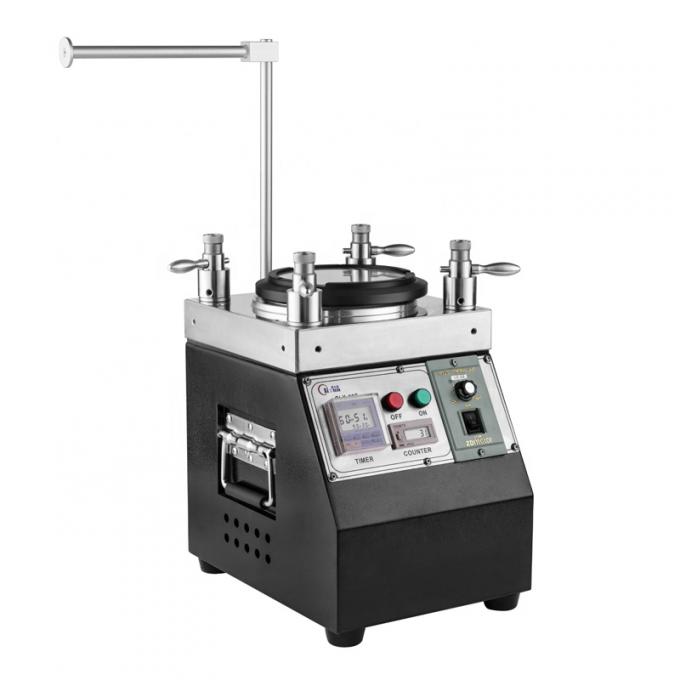

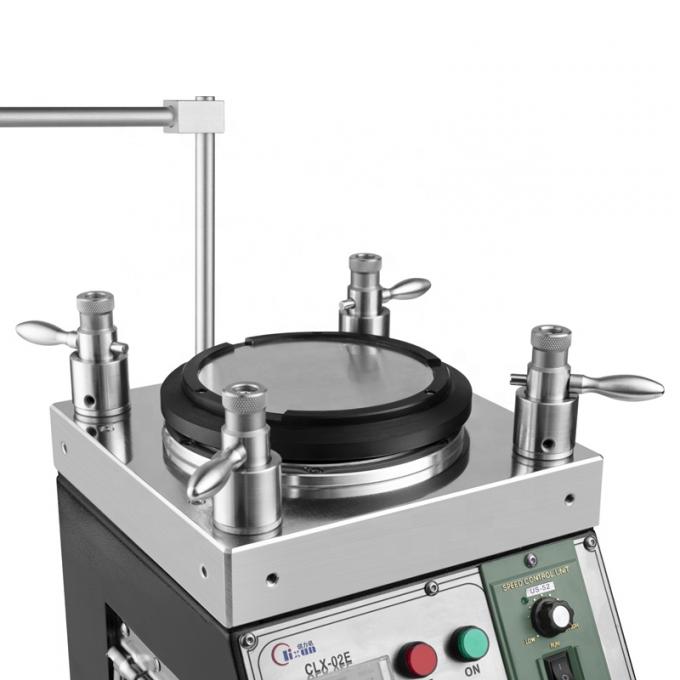

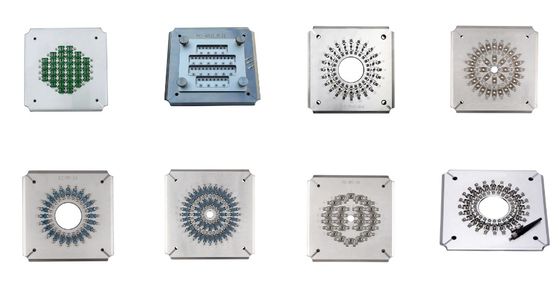

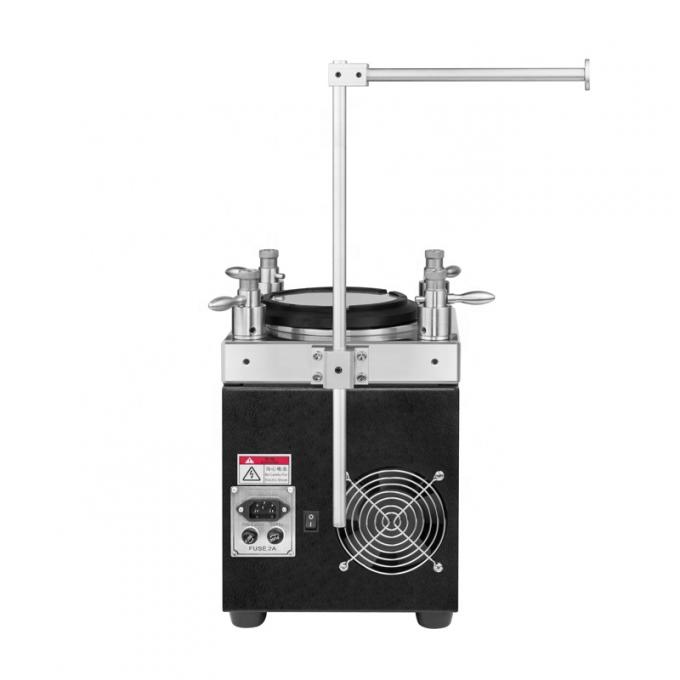

The Fiber Optical Polishing Machine is based on international universal standards and long-term hands-on experience. It exceeds requirements for GR-326 end face geometry, and adapts to four corners compression and new I.P.C. holder technology yielding the best results in the industry. No variability in result when polishing 1 or 24 connectors, with stable jig installation and compact size. This machine is designed for mass production needs, and can process excellent connector end-face of LC, SC, ST, FC, MTRJ, E2000 and other types as well as angle polishing.
| Machine Type | CLX-02E |
|---|---|
| Machine Size | L 240(mm) × W 240(mm) × H 260(mm) |
| Net Weight | 28kg |
| Power Input | 110~230VAC 50Hz/60Hz |
| Electric Power | 126w |
| Relative Humidity | 15%~85% |
| Work Temperature | 8℃~45℃ |
| O.D. of Rotation Plate | 127 mm（5 inch） |
| Time Settings | 99 min 99 sec (Max) |
| Speed for Rotation Plate | 140 rpm |
| Height of Plate Jumpiness | < 10 um |
| Pressure Configuration | 21 ~ 36 N/cm2 |
| Noice unloading Less | 50 dB Libration |
| Working Status | 0.25g 5~100Hz 10min |
| Stopping Status | 0.50g 5~100Hz 10min |

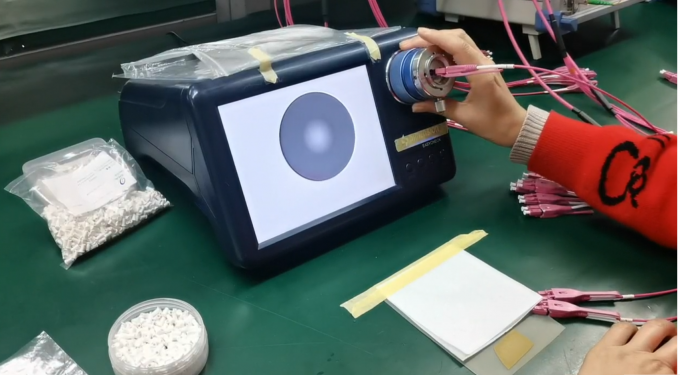

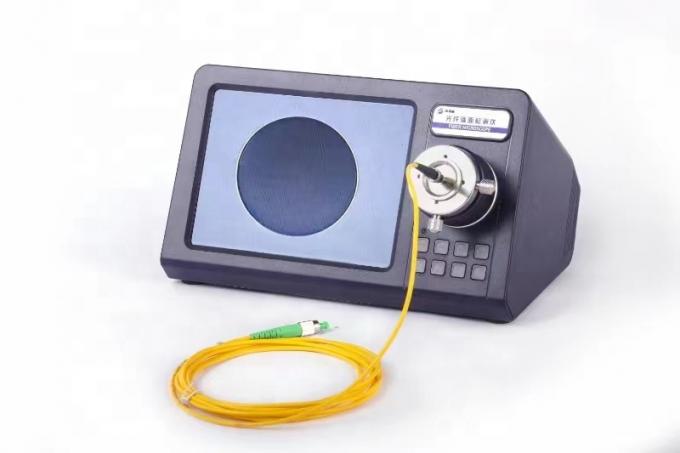

High-quality end-face polishing, no white spots, no scratches, the fiber edge is clearly visible
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |

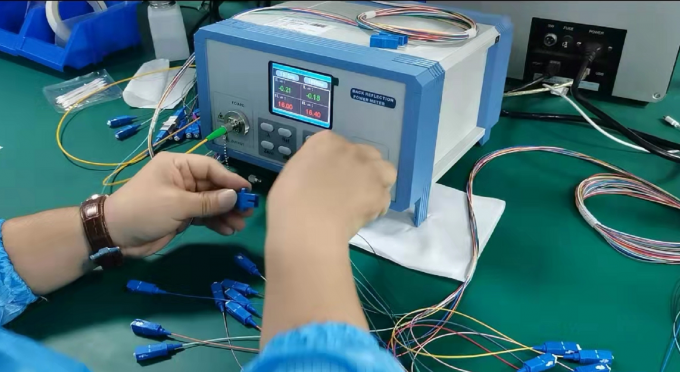

| Return loss | ≥55dB | ≥55dB | ≥30dB |
| NO. | Parameters | UPC Criterion | APC Criterion |
|---|---|---|---|
| 1. | Radius of Curvature | 5-25mm | 5-12mm |
| 2. | Apex Offset | 0-50μm | 0-50μm |
| 3. | Fiber Height | -100~+50μm | -100~+50μm |
| 4. | Angle | n/a | 8.00+/-0.50° |
