ホーム /製品/繊維のパッチ・コードの製造業機械/40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications

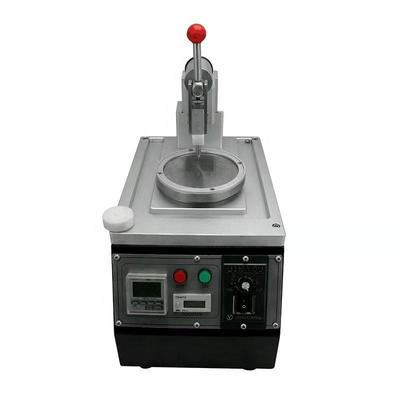

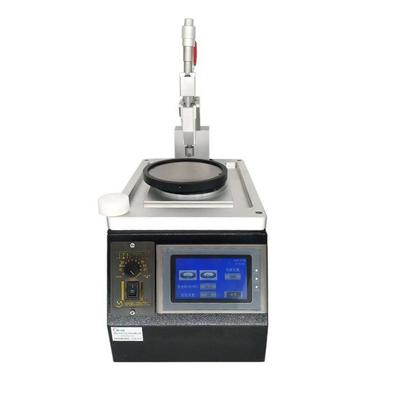

40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications

1
MOQ
$725.45-765.25
価格
40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
電源: 110~220V AC 50Hz/60Hz
電力: 40W
サイズ: 340*220*460mm
重さ: 25kg
磨く版のサイズ: 127mm
使用温度: 8°Cから45°C
相対湿度: 15%~85%
時間設定: 99分99秒 (最大)
労働状況: 0.25g 5~100Hz 10分
停止状態: 0.50g 5～100Hz 10分
コネクタタイプ: SC /FC /ST/LC/E2000/SMA905/MU
モデル番号: CLX-10
正味重量: 25kg
電源: AC110～220V 50Hz/60Hz
ハイライト:

40W Electric Power Fiber Optic Polishing Machine

,

127mm Polishing Plate Fiber Optic Polishing Machine

,

340*220*460mm Size Fiber Optic Polishing Machine
基本情報
起源の場所: 広東省、中国
ブランド名: chuanglixun
証明: RoHS
モデル番号: CLX-10、CLX-10
お支払配送条件
製品の説明
High Quality Multi Function Mini Buffing Bench Polishing Machine for Optical Fibers
40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 0 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 1 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 2 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 3 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 4 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 5 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 6
Technical Specifications
Model Number CLX-10
Size 340mm × 220mm × 460mm
Net Weight 25kg
Power Supply 110~220VAC 50Hz/60Hz
Electric Power 40W
Application Fiber Optic Polishing
Work Temperature 8℃~45℃
Connector Type SC/FC/ST/LC/E2000/SMA905/MU
Relative Humidity 15%~85%
Time settings 99 min 99 sec (Max)
Working Status 0.25g 5~100Hz 10min
Stopping Status 0.50g 5~100Hz 10min
Warranty Two-year warranty
MOQ 1 set
40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 7 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 8 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 9 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 10 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 11 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 12 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 13
Frequently Asked Questions
Are you a factory or a trader?
We are the factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4 to 6 days. Shipping time may vary based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
The warranty period is 1 year (providing free repairs, excluding consumables). After warranty, we continue to provide accessories at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements.
