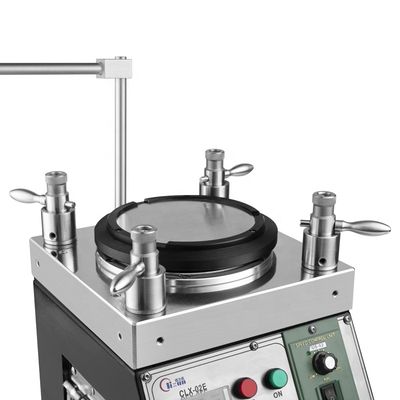

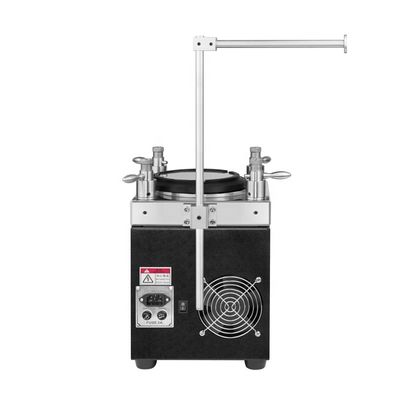

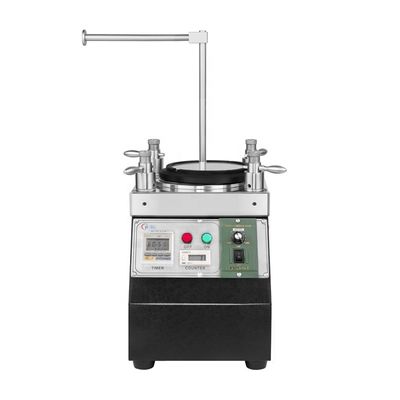

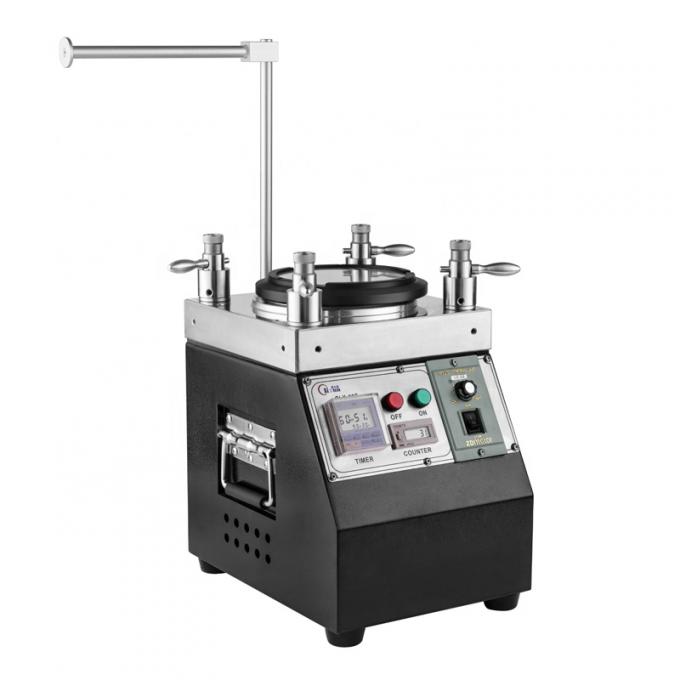

| Machine Type | CLX-02E |
|---|---|
| Machine Size | L 240(mm) × W 240(mm) × H 260(mm) |
| Net Weight | 28kg |
| Power Input | 110~230VAC 50Hz/60Hz |
| Electric Power | 126w |
| Relative Humidity | 15%~85% |
| Work Temperature | 8℃~45℃ |
| O.D. of Rotation Plate | 127 mm（5 inch） |

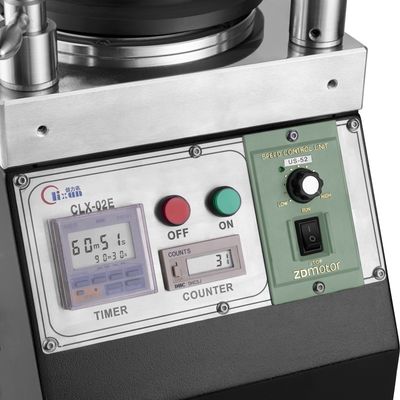

| Time Settings | 99 min 99 sec (Max) |
| Speed for Rotation Plate | 140 rpm |
| Height of Plate Jumpiness | < 10 um |
| Pressure Configuration | 21 ~ 36 N/cm2 |
| Noise Level | < 50 dB |
| Working Status Vibration | 0.25g 5~100Hz 10min |
| Stopping Status Vibration | 0.50g 5~100Hz 10min |

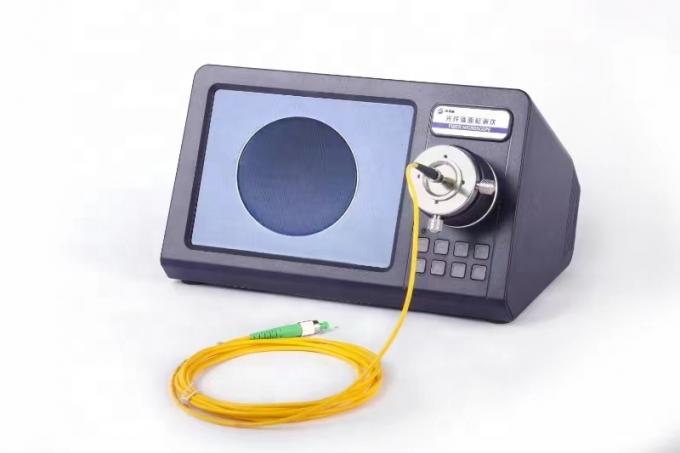

High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges

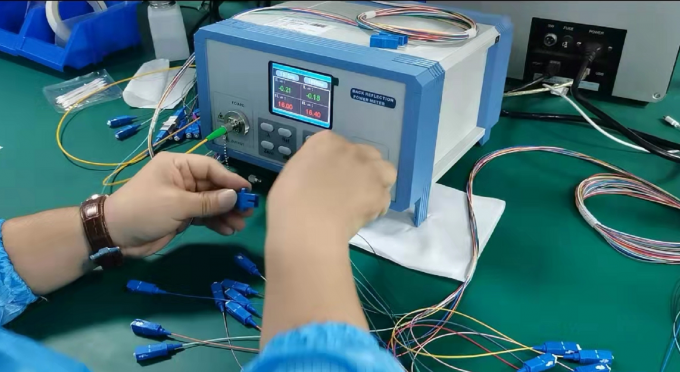

| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return loss | ≥55dB | ≥55dB | ≥30dB |

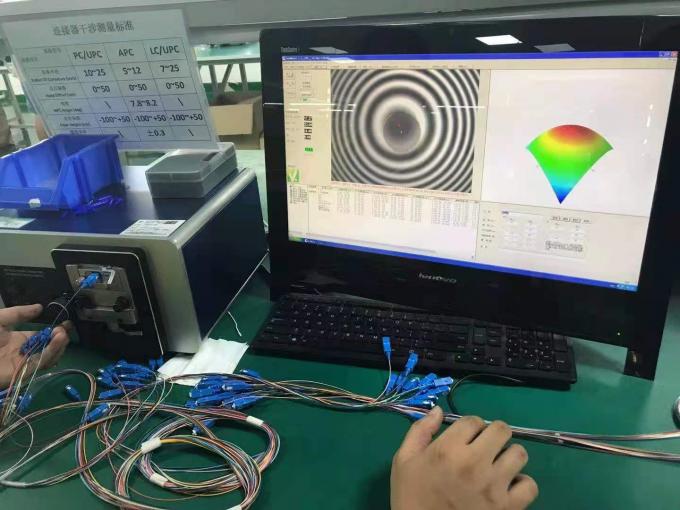

| NO. | Parameters | UPC Criterion | APC Criterion |
|---|---|---|---|
| 1. | Radius of Curvature | 5-25mm | 5-12mm |
| 2. | Apex Offset | 0-50μm | 0-50μm |
| 3. | Fiber Height | -100~+50μm | -100~+50μm |
| 4. | Angle | n/a | 8.00+/-0.50° |

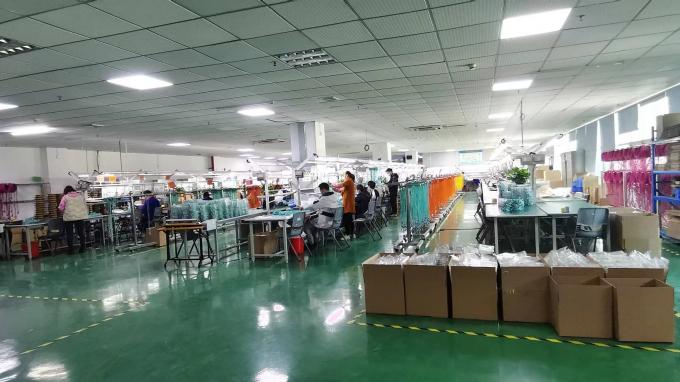

Established in 2010, Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is an optical communications equipment company integrating research and development, production, after-sales service and technical services. We provide not only high-quality products and excellent after-sales service, but also free technical support for customers encountering technical problems in fiber optic connector production.
We typically use DHL, FEDEX, UPS, EMS, TNT or Sea shipping. Customers may provide their courier account for us to select the most cost-effective shipping method based on order quantity.
