Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production

1
MOQ
$115.23-126.15
価格
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
加熱温度: 40～200℃
温度精度: ±5℃
入力電圧: AC 110V または AC 220V
消費電力: 200W
養生期間: 30～45分
硬化温度: 80~120℃
コネクタ容量: 24個のコネクタ
正味重量: 2.5kg
最高温度: 200℃
コネクタの硬化: 1~24個
寸法: 170×140×190mm
力: AC220V,200W
モデル番号: CLX-24D
硬化モデル: FC、SC、ST、LC
加熱ブロック: 24ポートブロック
ハイライト:

40-200 ℃ Heating Temperature Fiber Optic Curing Oven

,

80-120℃ Normal Curing Temperature Epoxy Curing Oven

,

30-45min Curing Period Patchcord Production Oven
基本情報
起源の場所: 広東省、中国
ブランド名: Chuanglixun
モデル番号: CLX-24D、CLX-24D
お支払配送条件
製品の説明

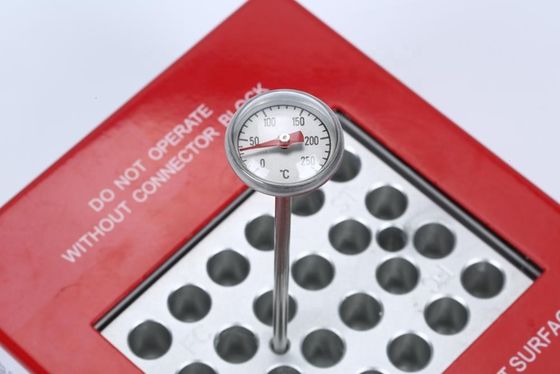

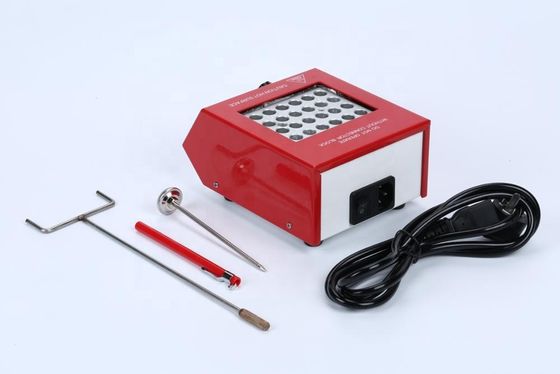

CLX-24D Fiber Optic Connector Ferrule Epoxy Curing Oven for Patchcord Production Digital Type Field Fiber Optic Oven
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 0
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 1
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 2
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 3
Product Highlights
  1. 24 connectors heating simultaneously
  2. Compatible with various connector types
  3. Heating block design minimizes heat loss
  4. Simple operation with excellent curing results
  5. Compact size for easy portability and quick heating
Key Features
  1. Specifically designed for epoxy curing of fiber optic connectors
  2. Adaptable to different connectors via interchangeable heating blocks
  3. Capacity for 24 connectors simultaneously
  4. Precise temperature control with power indicator
  5. Includes 24-port block for FC, ST, SC, SMA, D4 connectors
  6. Automatic timing with audible alarm when cycle completes
Technical Specifications
Curing Model FC, SC, ST, LC
Model Number CLX-24D
Type Fiber Optic Production Machine
Power AC220V, 200W
Maximum Temperature 200℃
Operating Temperature 80-120℃
Curing Period 30-45 minutes
Capacity 1-24 connectors
Weight 2.5kg
Dimensions 170×140×190mm
Warranty 1 Year
Applications
  • Universal curing solution for fiber optic connector manufacturers
  • Heating and solidification of various connector types
  • Epoxy curing for FC, SC, LC, MU, ST connectors
  • Suitable for both facility and field operations
