Efficient Automatic UV Silicone Dripping Machine with 300W Power and 70 KG Weight for Precision Glue Dispensing

1
MOQ
Efficient Automatic UV Silicone Dripping Machine with 300W Power and 70 KG Weight for Precision Glue Dispensing
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
重さ: 70 kg
電源: AC110 / 220V
力: 300W
寸法: 460mm×510mm×560mm
配給範囲: 330/330/50MM
転送方法: タイミング ベルト+精密線形ガイド
繊維の数: 150
繰り返す精度: +/- 0.02 mm/200
繰り返しの精度: ±0.02mm （X/Y/Z）
表示方法: ティーチングボックス LCD（320×240）
使用温度: 0℃～45℃
使用湿度: 40% - 80%
保管温度: -40℃～60℃
ストレージ湿度: 0%～95%
材料: 鋼鉄およびアルミニウム
ハイライト:

300W Power Automatic UV Silicone Dripping Machine

,

70 KG Weight Automatic Glue Dispensing Machine

,

460mmx510mmx560mm Size Dispensing Machine
基本情報
起源の場所: 広東省、中国
ブランド名: chuanglixun
モデル番号: CLX-3D-L01
お支払配送条件
製品の説明

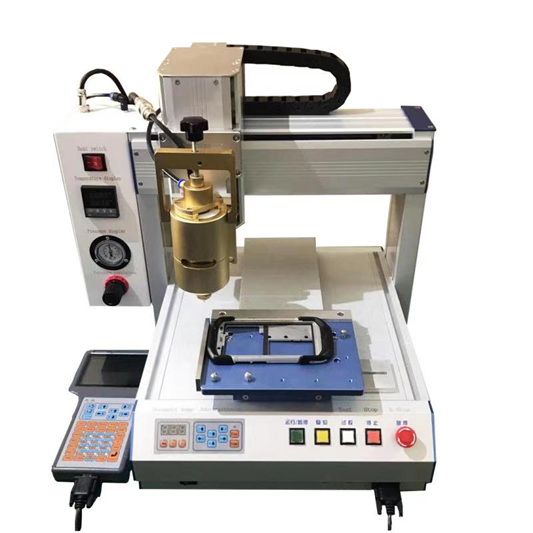

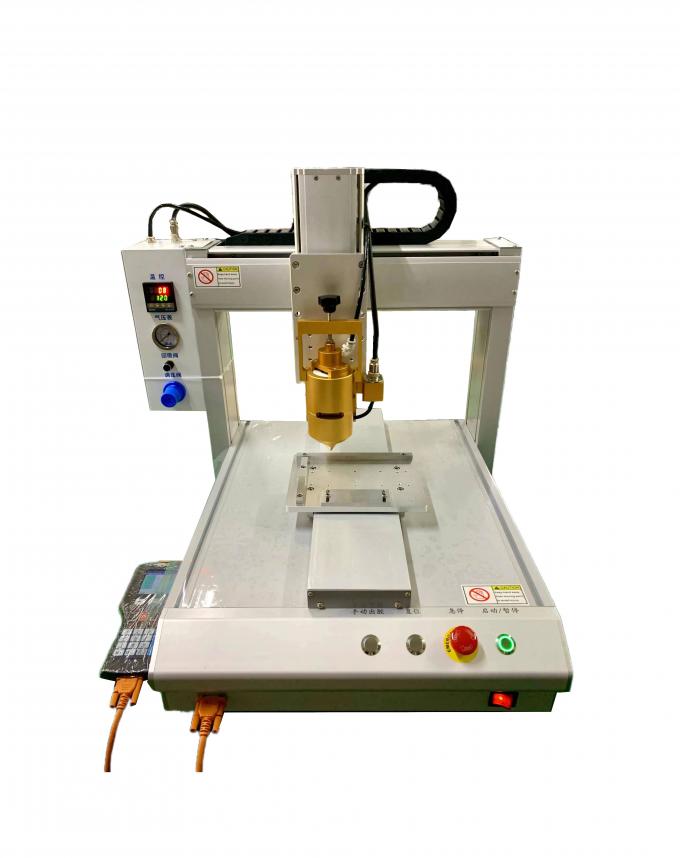

Efficient Automatic UV Silicone Dripping Machine
For Adhesion of Mobile Phone and Notebook Shells
Efficient Automatic UV Silicone Dripping Machine with 300W Power and 70 KG Weight for Precision Glue Dispensing 0
Efficient Automatic UV Silicone Dripping Machine with 300W Power and 70 KG Weight for Precision Glue Dispensing 1
Efficient Automatic UV Silicone Dripping Machine with 300W Power and 70 KG Weight for Precision Glue Dispensing 2
Product Description
Our automatic glue dispensing machine precisely sprays or dispenses adhesive for bonding, filling, coating, and sealing applications. The system integrates a gluing mechanism with X/YZ movement for exceptional accuracy. Featuring easy programming via teaching pendant, it supports various glue types and is ideal for:
  • Semiconductor sealing
  • PCB electronic parts fixing and protection
  • Mobile phone & laptop shell bonding
  • LCD glass substrate sealing
  • LED dispensing and optical lens applications
  • Automotive parts coating and hardware bonding
  • Battery sealing and quantitative liquid filling
Key Features
  • Intuitive LCD panel teach box for easy programming
  • Advanced path creation for points, lines, surfaces, arcs, circles, and complex 3D trajectories
  • Comprehensive teaching functions including array patterns and graphical libraries
  • Precise parameter control for glue size, speed, dispensing time, and pause intervals
  • Stable glue flow without leaks or drips
  • Special bucket design for rapid hot melt glue conversion
  • Dual work platform design for continuous operation and improved efficiency
Technical Specifications
Parameter Value
Net Weight 70 KG
Dimensions (W×D×H) 520 × 340 × 220 mm
Model CLX-3D-L01
Repeat Accuracy ±0.02 mm/200
Repeatability Precision ±0.02mm (X/Y/Z)
Display Teaching Box LCD (320 × 240)
Power Input AC110/220V (Internal switch conversion) 300W
Operating Temperature 0℃ - 45℃
Operating Humidity 40% - 80%
Storage Temperature -40℃ - 60℃
Storage Humidity 0% - 95%
Get a Free Quotation
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
Delivery via DHL or FedEx takes 4-6 days, extended for larger quantities.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty covering free repairs (excluding consumables). Post-warranty support available at cost.
Do you provide customized services?
Yes, we offer custom solutions based on customer requirements.
Request Custom Quote
