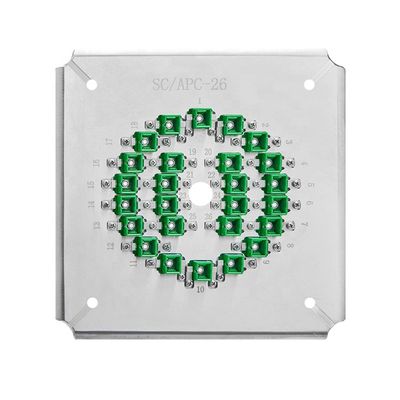

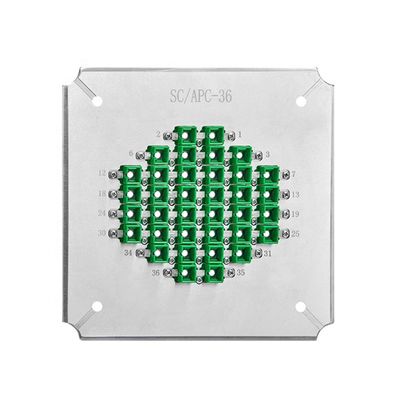

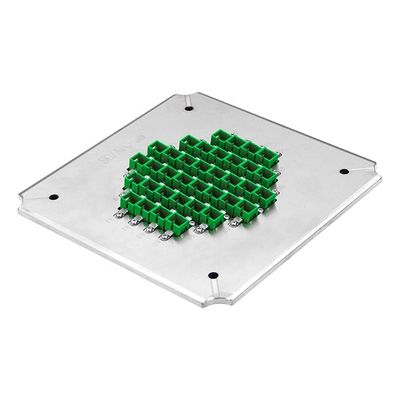

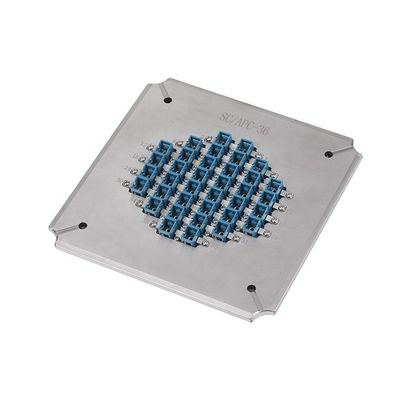

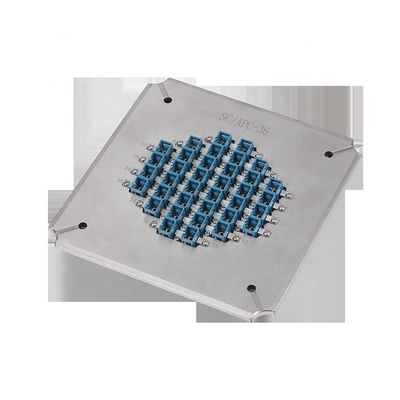

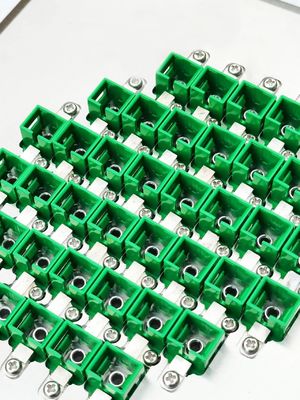

| Model | SC-UPC-24 | SC-APC-26 | SC-APC-36 |
|---|---|---|---|
| Brand | CLX | CLX | CLX |
| Connector Type | SC UPC | SC APC | SC APC |
| End-face | UPC | APC | APC |
| Ferrule Diameter | 2.5mm | 2.5mm | 2.5mm |
| Capacity | 24 positions | 26 positions | 36 positions |
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB (UPC) | ≥60dB (APC) | ≥60dB (APC) |
| Application | Polishing assembled SC UPC connectors | Polishing assembled SC APC connectors | Polishing assembled SC APC connectors |
| Material | Stainless Steel S136 | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight (kg) | 1.5 kgs / 2.0 kgs | ||
| Suitable machines | CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines | ||
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return loss | ≥55dB | ≥60dB | ≥30dB |
| NO. | Parameters | UPC Criterion | APC Criterion |
|---|---|---|---|
| 1. | Radius of Curvature | 5-25mm | 5-12mm |
| 2. | Apex Offset | 0-50μm | 0-50μm |
| 3. | Fiber Height | -100~+50μm | -100~+50μm |
| 4. | Angle | n/a | 8.00+/-0.50° |
