Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight

1
MOQ
$549.23-592.12
価格
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
正味重量: 1.3 kg
繊維の数: 1
材料: 焼入れステンレス鋼 s136
寸法: 174mm×174mm×26mm
挿入損失: ≤2.3dB
波長: 650nm
動作温度: -40℃～+70℃、-55℃～+85℃
減衰: ＜180dB/km
総重量: 1.5キログラム
磨く容量: 1 サイクルで最大 24 個のコネクタ
ファーストパスの歩留まり: 98%～100%
干渉通過率: ≥ 98% (100% 標準)
適切なマシン: CLX-02E 研磨機、精​​工技研 SFP-550 研磨機
ファイバータイプ: プラスチック光ファイバー
コネクター モデル: HFBR-4501Z、HFBR-4511Z
ハイライト:

Hardened Stainless Steel S136 Polishing Fixture

,

HFBR-4501Z/HFBR-4511Z Polishing Fixture

,

2 Year Warranty Polishing Fixture
基本情報
起源の場所: 中国広州
ブランド名: chuanglixun
証明: RoHS
モデル番号: HFBR 4501Z/HFBR 4511Z、HFBR 4501Z/HFBR 4511Z
お支払配送条件
製品の説明
Factory Custom Plastic Optical Fiber Patch Cord Polishing Fixture
Avago HFBR-4501Z/HFBR-4511Z Connector Polishing Jig
This high-stability fiber polishing fixture delivers excellent surface quality for plastic optical fiber connectors. Manufactured from hardened steel S2316 with heat treatment for extended service life, it's designed for HFBR series connectors and customizable to customer requirements.
Key Features
  1. Compatible with HFBR-4501Z/HFBR-4511Z plastic optical fiber connectors
  2. Quick-change jig system for simple, flexible operation
  3. High-efficiency design polishes up to 24 connectors per cycle with 98-100% first-pass yield
  4. IPC structure with independent compression for each connector
  5. Replaceable accessories extend fixture lifespan
  6. Heat-treated hardened steel S136 construction for durability

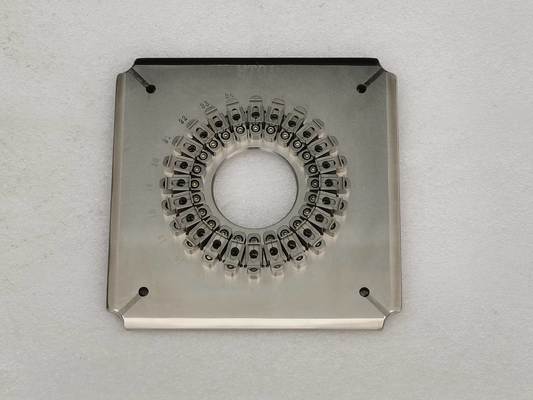

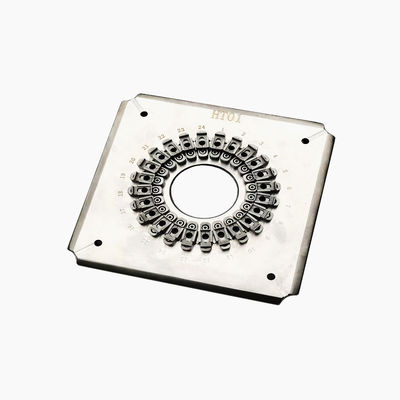

Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 0 Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 1 Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 2
Technical Specifications
Specification Detail
Product Name Plastic optical fiber patch cord polishing fixture
Model HFBR-4501Z/HFBR-4511Z
Insertion Loss ≤2.3dB (connection loss excluded)
Brand Chuanglixun
Wavelength 650nm
Attenuation <180dB/km
Material Hardened stainless steel S136
Dimensions 174mm × 174mm × 26mm
Weight 1.3 kg (Net), 1.5 kg (Gross)
Compatible Machines CLX-02E polishing machine, Seikoh Giken SFP-550, and similar models

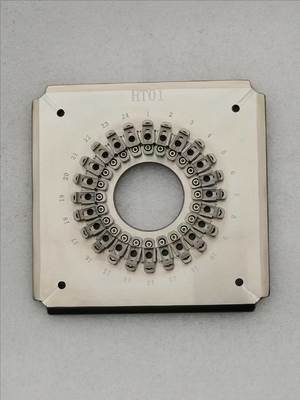

Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 3
Get a free quotation →
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. (established 2010) specializes in optical communications equipment with integrated R&D, production, and technical support services.
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 4
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide samples?
Yes, samples are available.
What are your shipping methods?
Standard delivery via DHL or FedEx takes 4-6 days (may vary by quantity).
What payment methods do you accept?
We accept advance booking, T/T, and T/L payments.
What is your warranty policy?
1-year warranty covering free repairs (excluding consumables). Post-warranty support available at cost.
Do you offer customization?
Yes, we provide custom solutions based on customer requirements.
Request a free quotation →
