LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100%

1
MOQ
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100%
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
タイプ: 繊維光学の生産機械
モデル: LC/APC
正味重量: 1.2kg
材料: 高強度ステンレス鋼 S136
寸法: 174mm*174mm*26mm
繊維の数: 24/36/48 年
挿入損失: ≤0.20dB
返品損失: ≧55dB (PC) ≧60dB (APC)
フェルールの直径: 1.25mm
容量: 24/36/48 ポジション
終り表面: APC
曲率半径: 5-25mm (UPC)、5-12mm (APC)
頂点オフセット: 0～50μm
繊維の高さ: -100～+50μm
角度: 8.00+/-0.50° (APC)
ハイライト:

Insertion Loss ≤0.20dB Polishing Fixture

,

Return Loss ≥60dB Fiber Polishing Jig

,

First Pass Yield 98%–100% Optical Fiber Polishing Holder
基本情報
起源の場所: 中国広州
ブランド名: Chuanglixun
モデル番号: LC/APC
お支払配送条件
製品の説明

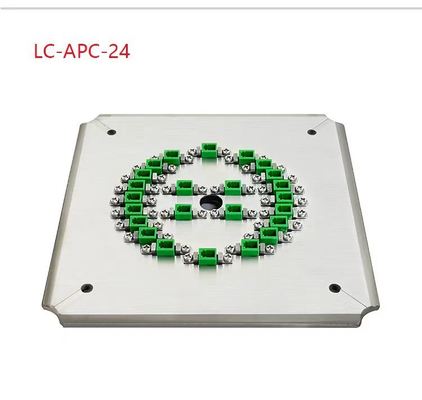

LC APC Optical Fiber 24/36/48 Ports Polishing Fixture
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 0 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 1
This fiber polishing fixture/jig offers high stability and excellent surface quality. Constructed from high-quality heat-treated steel (hardened steel S2316) for long service life. Available in configurations for SC, FC, ST, and LC connectors, with custom designs available upon request.
Key Features:
  • Designed specifically for LC/APC connectors
  • Easy jig replacement with simple, flexible operation
  • High efficiency: polishes 24, 36, or 48 connectors per cycle with 98%-100% first-pass yield
  • IPC structure with independent compression for each connector
  • Performance metrics: APC return loss ≥60dB, UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
  • Constructed from heat-treated hardened steel S136 for durability
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 2 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 3 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 4
Technical Specifications:
Model LC-APC-24 SC-APC-36 SC-APC-48
Brand CLX CLX CLX
Connector Type LC APC LC APC LC APC
End-face APC APC APC
Ferrule Diameter 1.25mm 1.25mm 1.25mm
Capacity 24 positions 36 positions 48 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥60dB (APC) ≥60dB (APC) ≥60dB (APC)
Application Polishing assembled LC APC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight (kg) 1.3 kgs / 1.5 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
