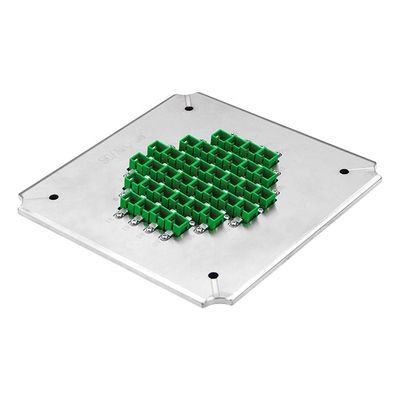

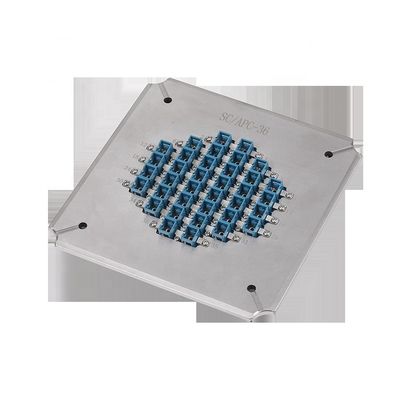

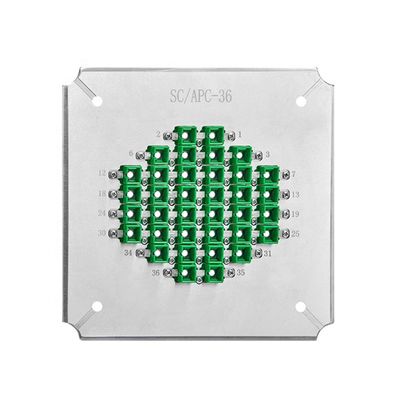

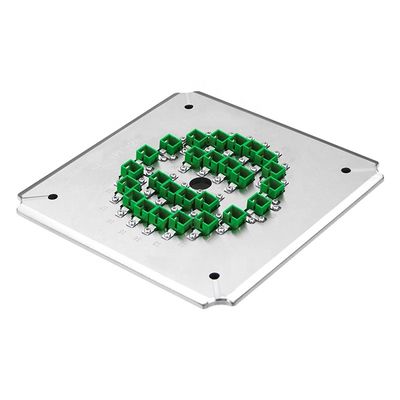

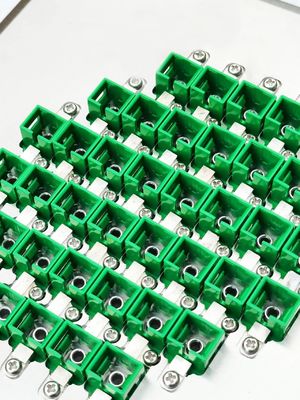

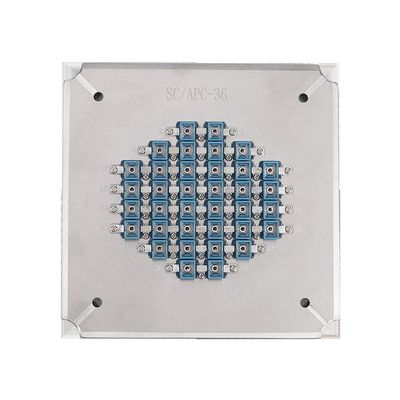

High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type

1
MOQ
$268.56-365.16
価格
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
材料: 硬化ステンレス鋼2316
コネクタタイプ: sc apcのコネクター
サイズ: 174*174*26mm
フェルールの直径: 2.50mm
正味重量: 1.5キログラム
総重量: 2.0キログラム
繊維の数: 36 ポジション
挿入損失: ≤0.20dB
返品損失: ≥60dB (APC)
終り表面: APC
容量: 36 ポジション
曲率半径: 5-12mm
頂点オフセット: 0～50μm
繊維の高さ: -100～+50μm
角度: 8.00+/-0.50°
ハイライト:

High Stability Polishing Fixture

,

Good Surface Quality Fiber Polishing Plate

,

Easy to Change Jigs Fiber Optic Polishing Jig
基本情報
起源の場所: 中国広州
ブランド名: Chuanglixun
証明: ce
モデル番号: SC-APC-36
お支払配送条件
製品の説明
Fiber Optic Connectors SC APC Polishing Jig
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 0
This high-stability fiber polishing fixture delivers excellent surface quality for SC APC connectors. Constructed from heat-treated hardened steel S2316 for durability, it supports various connector types including SC, FC, ST, and LC, with custom configurations available.
Key Features
  • Specifically designed for SC/APC connectors
  • Quick-change jig system for simple operation
  • High-efficiency polishing of 26 or 36 connectors per cycle
  • 98%-100% first-pass yield for end face quality
  • IPC structure with independent compression for each connector
  • Replaceable accessories extend service life
  • APC return loss ≥60dB, insertion loss ≤0.20dB (typical)
Technical Specifications
Model SC-APC-18 SC-APC-26 SC-APC-36
Brand CLX CLX CLX
Connector Type SC APC SC APC SC APC
End-face APC APC APC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 26 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥60dB (APC) ≥60dB (APC) ≥60dB (APC)
Application Polishing assembled SC APC connectors
Material Stainless Steel S136
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar models
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 1
Polishing Performance
1. Polished Connector Ferrule Faces
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 2
High-quality end-face polishing with no white spots or scratches. Fiber edges remain clearly visible for optimal performance.
2. ILRL Test Results
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 3
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
3. Geometry Test Results
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 4
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. has been a leading optical communications equipment manufacturer since 2010. We specialize in R&D, production, and technical support for fiber optic connector solutions.
Shipping & Support
We ship worldwide via DHL, FEDEX, UPS, EMS, TNT or Sea. Customers may provide their preferred courier account for optimized shipping costs.
Frequently Asked Questions
1. Are you a factory or a trader?
We are the factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, samples are available.
4. How will you ship to me?
4-6 days via DHL or FedEx, depending on order quantity.
5. How do we pay?
Multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty with free repairs (consumables excluded). Post-warranty support available at cost.
7. Do you provide customized services?
Yes, we offer custom solutions based on customer requirements.
